DP 90 :

9 kHz - 250 MHz / 90 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 90 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >35 W and H<-20dBc at 9 kHz
    • P1dB >45 W and H<-20dBc from 10 kHz to 20 kHz
    • P1dB >70 W and H<-20dBc from 20 kHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

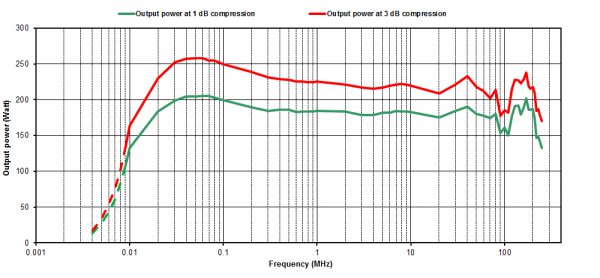

DP 180 :

9 kHz - 250 MHz / 180 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 180 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >90 W and H<-20dBc at 9 kHz
    • P1dB >110 W and H<-20dBc from 10 kHz to 20 kHz
    • P1dB >150 W and H<-20dBc from 20 kHz to 50 MHz
    • P1dB >110 W and H<-20dBc from 50 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...


DP 340 :

9 kHz - 250 MHz / 340 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 340 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >225 W and H<-20dBc at 9 kHz
    • P1dB >280 W and H<-20dBc from 10 kHz to 20 kHz
    • P1dB >300 W and H<-20dBc from 20 kHz to 50 MHz
    • P1dB >225 W and H<-20dBc from 50 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...


DP 670 :

9 kHz - 250 MHz / 670 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 670 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >300 W and H<-20dBc at 9 kHz
    • P1dB >400 W and H<-20dBc from 10 kHz to 20 kHz
    • P1dB >600 W and H<-20dBc from 20 kHz to 50 MHz
    • P1dB >380 W and H<-20dBc from 50 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...


DP 1350 :

9 kHz - 250 MHz / 1350 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 1350 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >950 W and H<-20dBc at 9 kHz
    • P1dB >1100 W and H<-20dBc from 10 kHz to 20 kHz
    • P1dB >1000 W and H<-20dBc from 20 kHz to 100 MHz
    • P1dB >800 W and H<-20dBc from 100 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...


DP 2500 :

9 kHz - 250 MHz / 2500 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 2500 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >1800 W and H<-20dBc at 9 kHz
    • P1dB >2000 W and H<-20dBc from 10 kHz to 50 MHz
    • P1dB >1300 W and H<-20dBc from 50 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...


DP 5000 :

9 kHz - 250 MHz / 5000 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 5000 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >4000 W and H<-20dBc at 9 kHz
    • P1dB >4500 W and H<-20dBc from 10 kHz to 30 MHz
    • P1dB >2400 W and H<-20dBc from 30 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 22" Cabinet on wheels
  • 3 years standard warranty
Read...


DP 10000 :

9 kHz - 250 MHz / 10000 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 10000 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 8000 W and H<-20 dBc up to 30 MHz and
    • P1dB > 4500 W and H<-20 dBc from 30 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...


DP 16000 :

9 kHz - 250 MHz / 16000 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz – 250 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 16000 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 14 kW and H<-20dBc at 9 kHz
    • P1dB > 15 kW and H<-20dBc from 10 kHz to 30 MHz
    • P1dB > 8 kW and H<-20dBc from 30 MHz to 225 MHz
    • P1dB > 6 kW and H<-20dBc from 225 MHz to 250 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" and 22" Cabinet on wheels
  • 3 years standard warranty
Read...
