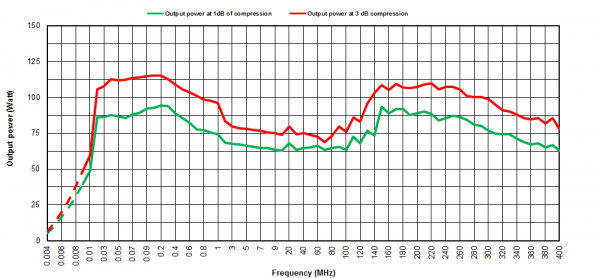

DR 75 :

9 kHz - 400 MHz / 75 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 75 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 35 W and H<-20 dBc at 9 kHz
    • P1dB > 40 W and H<-20 dBc from 10 kHz to 20 kHz
    • P1dB > 55 W and H<-20 dBc from 20 kHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

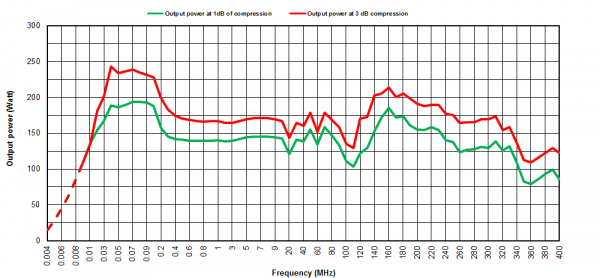

DR 140 :

9 kHz - 400 MHz / 140 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 140 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 90 W and H<-20 dBc at 9 kHz
    • P1dB > 110 W and H<-20 dBc from 10 kHz to 20 kHz
    • P1dB > 100 W and H<-20 dBc from 20 kHz to 250 MHz
    • P1dB > 60 W and H<-20 dBc from 250 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

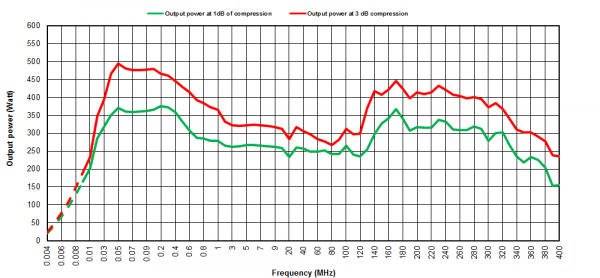

DR 290 :

9 kHz - 400 MHz / 290 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 290 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 140 W and H<-20 dBc at 9 kHz
    • P1dB > 180 W and H<-20 dBc from 10 kHz to 20 kHz
    • P1dB > 200 W and H<-20 dBc from 20 kHz to 300 MHz
    • P1dB > 140 W and H<-20 dBc from 300 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

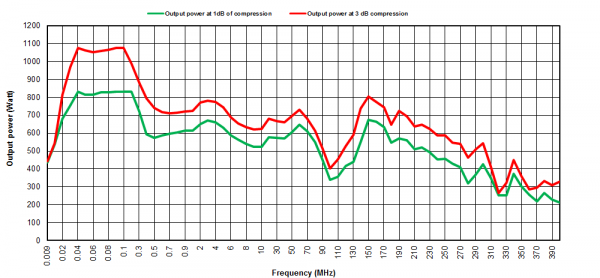

DR 540 :

9 kHz - 400 MHz / 540 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 540 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 300 W and H<-20 dBc up to 250 MHz and
    • P1dB > 150 W and H<-20 dBc from 250 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

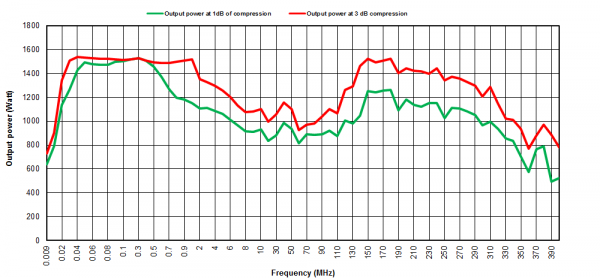

DR 1100 :

9 kHz - 400 MHz / 1100 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 1100 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 600 W et H < -20dBc à 9 kHz
    • P1dB > 700 W and H<-20 dBc up to 300 MHz and
    • P1dB > 400 W and H<-20 dBc from 300 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...

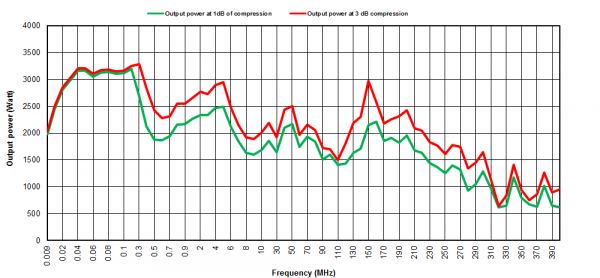

DR 1800 :

9 kHz - 400 MHz / 1800 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 1800 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 1500 W and H<-20 dBc from 9 kHz to 50MHz
    • P1dB > 1200 W and H<-20 dBc from 50 MHz to 250MHz
    • P1dB > 500 W and H<-20 dBc from 250 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...

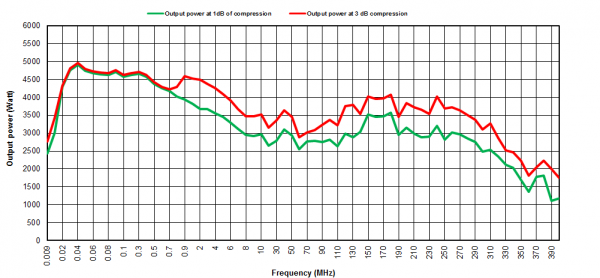

DR 3200 :

9 kHz - 400 MHz / 3200 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 9 kHz –400 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power : 3200 W CW
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 2000 W and H<-20 dBc at 9 kHz
    • P1dB > 2300 W and H<-20 dBc from 10 kHz to 250 MHz
    • P1dB > 1000 W and H<-20 dBc from 250 MHz to 400 MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 22" Cabinet on wheels
  • 3 years standard warranty
Read...
