MT Range

→ Catalog  → MT Range

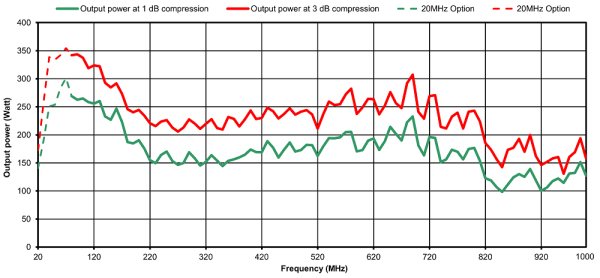

MT 175 :

80 MHz - 1000 MHz / 175 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Optional frequency extension up to 20 MHz
  • Typical output power : 175 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 310 possible
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

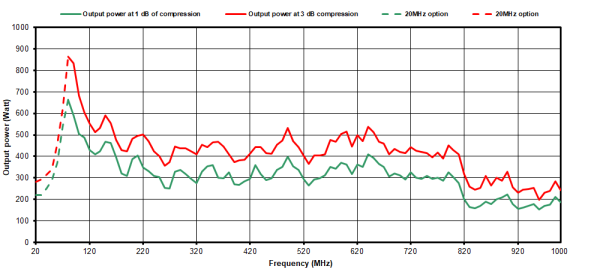

MT 310 :

80 MHz - 1000 MHz / 310 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Optional frequency extension up to 20 MHz
  • Typical output power : 310 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 640 possible (7U)
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

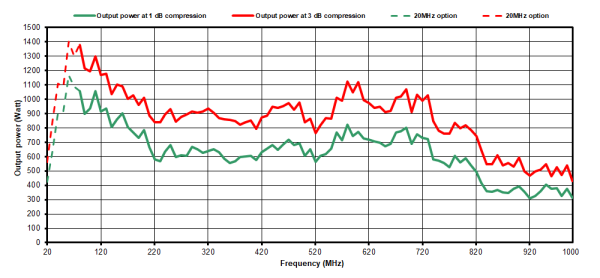

MT 640 :

80 MHz - 1000 MHz / 640 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Optional frequency extension up to 20 MHz
  • Typical output power : 640 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 1150 possible (24U)
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

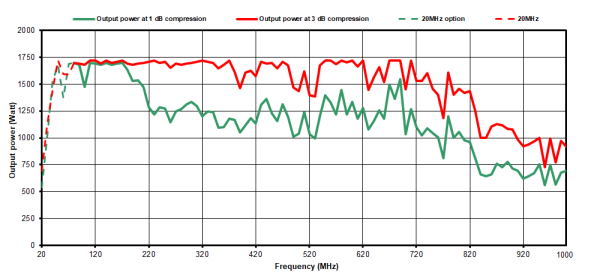

MT 1150 :

80 MHz - 1000 MHz / 1150 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Optional frequency extension up to 20 MHz
  • Typical output power : 1150 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 1600 possible (30U)
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...

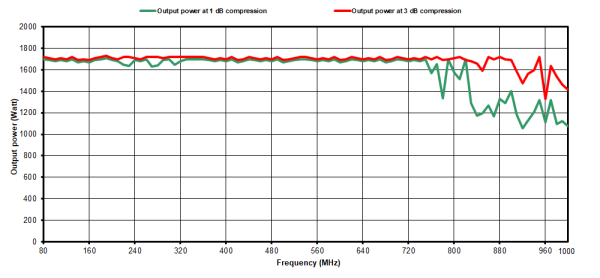

MT 1600 :

80 MHz - 1000 MHz / 1600 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Typical output power : 1600 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 1950 possible (30U)
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...

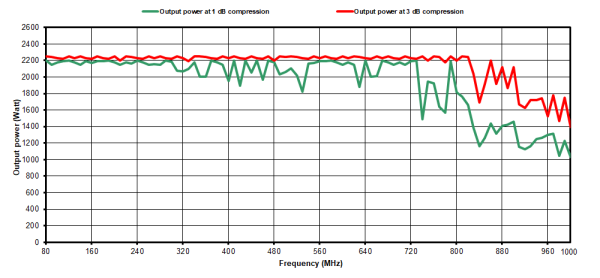

MT 1950 :

80 MHz - 1000 MHz / 1950 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Typical output power : 1950 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 2450 or MT 3400 possible (38U)
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...

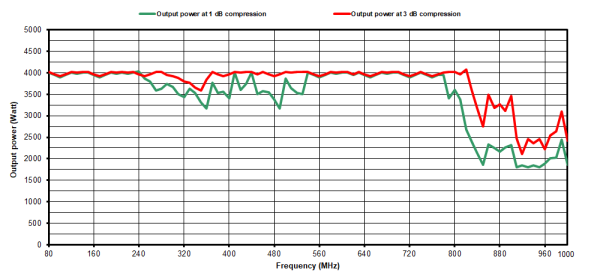

MT 3400 :

80 MHz - 1000 MHz / 3400 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Typical output power : 3400 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Upgradable to MT 4700 possible (3x32U)
  • Reliable, efficient and robust
  • 22" Cabinet on wheels
  • 3 years standard warranty
Read...

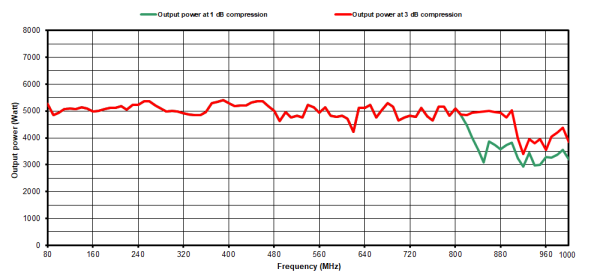

MT 4700 :

80 MHz - 1000 MHz / 4700 W CW

  • Class A solid state
  • Broadband (instantaneous single band): 80 MHz – 1000 MHz
  • Typical output power : 4700 W CW
  • Linear output power guaranteed with harmonics < -20 dBc
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 2 x 22" Cabinet on wheels
  • 3 years standard warranty
Read...
