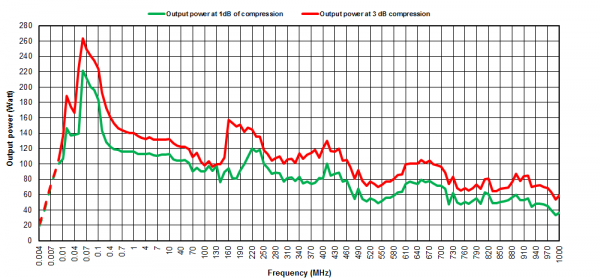

DT 90/130 :

9 kHz - 1000 MHz / 90 W CW - 130 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
    • 90 W CW (9 kHz – 20 MHz) and
    • 130 W CW (20 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB >35 W and H<-20dBc at 9 kHz
    • P1dB >45 W and H<-20dBc from 10 kHz to 20 MHz
    • P1dB and H < -20 dBc from 20MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

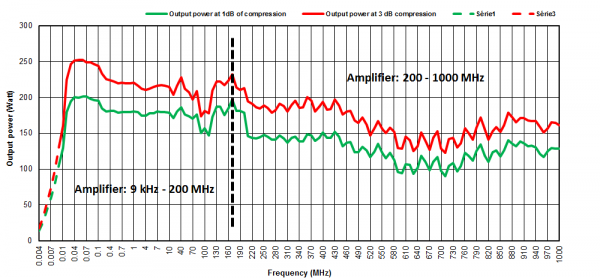

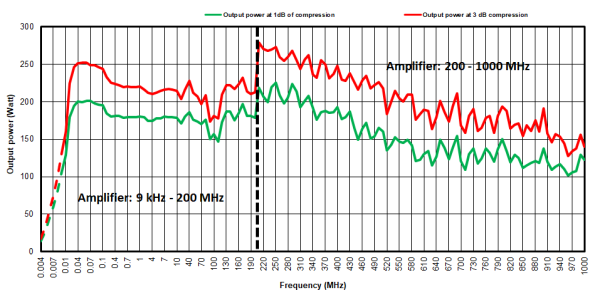

DT 170/130 :

9 kHz - 1000 MHz / 170 W CW - 130 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
    • 170 W CW (9 kHz – 200 MHz) and
    • 130 W CW (200 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 100 W and H<-20dBc at 9 kHz
    • P1dB > 110 W and H<-20dBc from 10 kHz to 200 MHz
    • P1dB and H < -20 dBc from 200MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

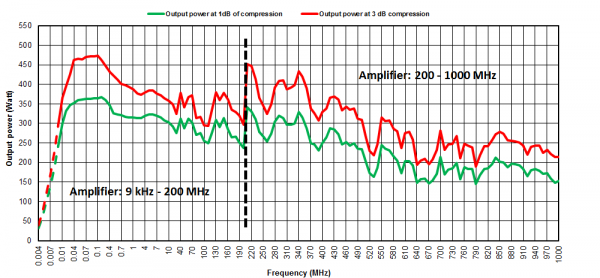

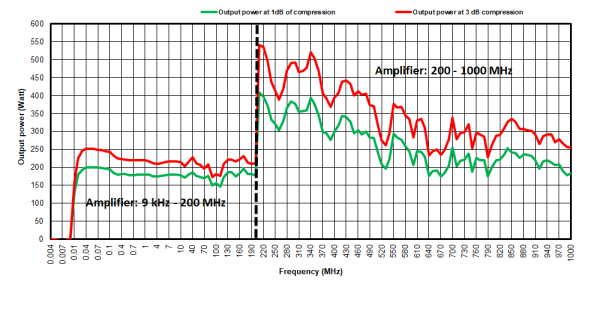

DT 310/220 :

9 kHz - 1000 MHz / 310 W CW - 220 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
    • 310 W CW (9 kHz – 200 MHz) and
    • 220 W CW (200 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 180 W and H < -20 dBc up to 200 MHz
    • P1dB and H < -20 dBc from 200MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Rack
  • 3 years standard warranty
Read...

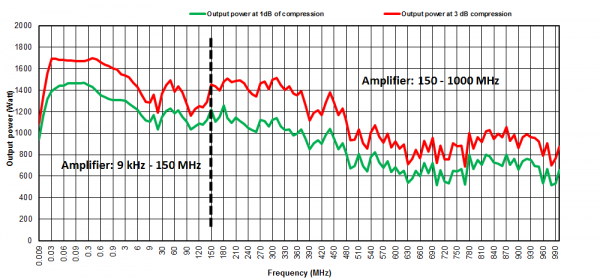

DT 1250-800 :

9 kHz - 1000 MHz / 1250 W CW - 800 W CW

  • Class A solid state
  • Broadband (instantaneous dual band): 9 kHz – 1000 MHz
  • Frequency extension between 4 kHz and 9 kHz upon request
  • Typical output power :
    • 1250 W CW (9 kHz – 150 MHz) and
    • 800 W CW (150 MHz – 1 GHz)
  • Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
    • P1dB > 900 W and H<-20 dBc at 9 kHz
    • P1dB > 1000 W and H<-20 dBc from 10 kHz to 20 kHz
    • P1dB > 950 W and H < -20 dBc from 20 kHz to 150MHz
    • P1dB and H < -20 dBc from 150MHz to 1000MHz
  • Air cooling: self contained fans
  • Can operate in full mismatch conditions without damage
  • Reliable, efficient and robust
  • 19" Cabinet on wheels
  • 3 years standard warranty
Read...
