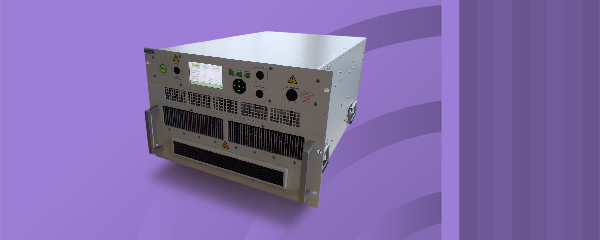

DT 180 :
9 kHz - 1000 MHz / 180 W CW


- Class A solid state
- Broadband (instantaneous single band): 9 kHz – 1000 MHz
- Frequency extension between 4 kHz and 9 kHz upon request
- Typical output power : 180 W CW
-
Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 120 W and H < -20 dBc up to 400 MHz and
- P1dB > 50 W and H < -20 dBc from 400 MHz to 1000 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust
- 19" Rack
- 3 years standard warranty
VERSIONS :
-
DT 180 D amplifier with:
- Multicolor LCD display with touch panel
- Digital control
- IEEE 488 GPIB, Ethernet, USB, RS232 Communications
- Temperature controlled fans
- Safety interlock
-
DT 180 DC : DT 180 D with :
- Integrated dual directional coupler
- Display of instantaneous incident and reflected power
MAINTENANCE :
-
Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
- EMC tests
- RF tests and instrumentation
- Radiocommunication
- Measurement and research laboratories

- Frequency bandwidth : 9 kHz - 1000 MHz
- Typical output power : 180 W
- Power at 3 dB compression : 140 W min. up to 400 MHz / 60 W min. from 400 MHz to 1000 MHz
- Power at 1 dB compression : 120 W min. up to 400 MHz / 50 W min. from 400 MHz to 1000 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 52 dB
- Linear power gain flatness : ± 5 dB max
- Mismatch tolerance : Infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type N fem. (front or rear panel) – other connector type on request
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies, temperatures, fans
- Communication interface : Ethernet, USB, GPIB, RS232
- Color LCD Display with touch screen : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air with fan speed control: 120 l/sec max. (self contained fans)
- Power voltage : 200-250 VAC, 47-63 Hz, single phase
- Rated current : 6.7 A at 230 VAC
- Dimensions : 640 x 450 x 312 mm (7U) / 25.2 x 17.7 x 12.3 in (7U)
- Weight : 47kg/104lbs
DT 180 DC version :
- Integrated bidirectional power coupler : Coupling factor 49 dB typ.
- Power coupling connector : Type N fem. (rear panel)
- Estimated output power losses due to the coupler : 0.6 dB

- External coupler
- Supply and integration inside a cabinet
- Bulk Current Injection + Calibration JIG
- RF Power cable
- Switching unit
