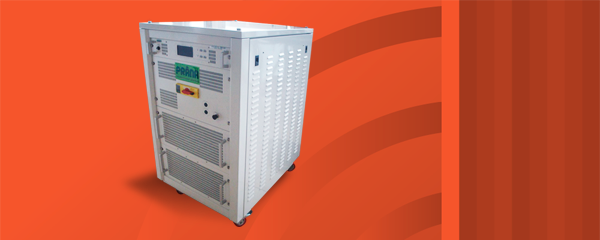

UX 180 :
2 GHz - 6 GHz / 180 W CW


- Class A solid state
- Broadband (instantaneous single band): 2 GHz – 6 GHz
- Typical output power : 180 W CW
- Linear output power guaranteed with harmonics < -20 dBc
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust
- 19" cabinet on wheels
- 3 years standard warranty
- Export license can be requested
VERSIONS :
-
UX 180 DC amplifier with:
- Display
- Digital control
- IEEE 488 GPIB Communication
- Integrated bidirectional coupler
- display of instantaneous power
MAINTENANCE :
-
Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
- EMC tests
- RF tests and instrumentation
- Radiocommunication
- Measurement and research laboratories

- Frequency bandwidth : 2 GHz - 6 GHz
- Typical output power : 180 W
- Power at 3 dB compression : 140 W min. up to 4 GHz / 120 W min. from 4 GHz to 6 GHz
- Power at 1 dB compression : 120 W min. up to 4 GHz / 100 W min. from 4 GHz to 6 GHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression
- Class type : Class A
- Gain : 53 dB
- Linear power gain flatness : ± 5 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type N fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 53 dB typ
- Power coupling connector : Type N fem. (rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 150 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 240 l/sec max. (self contained fans)
- Power voltage : 200-250 VAC, 47-63 Hz, single phase
- Rated current : 10 A at 230 VAC
- Dimensions : 600 x 840 x 1050 mm (18U) / 23.6 x 33.1 x 41.3 in (18U)
- Weight : 160 kg / 353 lb
